• A large parking shelter with several RVs and trucks parked underneath, surrounded by green trees and a grassy area.

    Built for Strength, and Scalability

    From permitting to installation, Shade Caster delivers streamlined, modular canopy systems that go up fast and last for decades. Whether you're expanding or starting new, our galvanized steel canopies grow with your storage business.

  • Aerial view of a parking area with two covered sections, one with a few parked cars and an RV, surrounded by trees and a clear sky.

    Maximize Rentable Space

    Our structures are engineered to increase your ROI. Our innovative pier design conceals footings beneath the pavement, eliminating clutter and maximizing your usable space, because every square foot counts.

  • An outdoor storage area with a large metal roof supported by white metal poles, containing several RV trailers and a pickup truck.

    Clean Finish. Smart Design.

    Our canopies don’t just look modern—they’re built that way. With optional solar panel integration and a clutter-free foundation system, Shade Caster offers sustainable structures that are as functional as they are beautiful.

  • Empty outdoor RV storage lot with metal carports, parked RV, and vehicles under shelter, on a clear sunny day.

    Less Congestion. More Revenue.

    Unlike traditional canopy systems, Shade Caster designs eliminate above-ground obstructions. That means easier maneuvering for large vehicles, happier tenants, and more rentable square footage.

  • A modern bus shelter with multiple parked white and black vans underneath, surrounded by trees and a cloudy sky reflected on the wet pavement.

    Engineered to Impress & to Last

    Shade Caster canopies are made from durable galvanized steel, engineered for all weather conditions. Our clean, modular designs elevate the look and performance of your Boat & RV storage facility for years to come.

Shade Caster Installation, Start to Finish

Watch how a Shade Caster system comes together in real time. From steel placement to final assembly, every step reflects our commitment to structural integrity, safety, and efficient project delivery.

Standard Heights

• Eave Height: 9 ft

• Clearance: 9 ft

• Peak Height: 9'11 ft

Modular Bay Spacing

• Typical Bay: 20 ft (two 10 ft spaces)

• Custom spacing available upon request

Engineering Capabilities

• Wind load: up to 105 mph

• Snow load: up to 15 psf

• Fully engineered drawings provided

60° Bay Options

Straight Bay Options

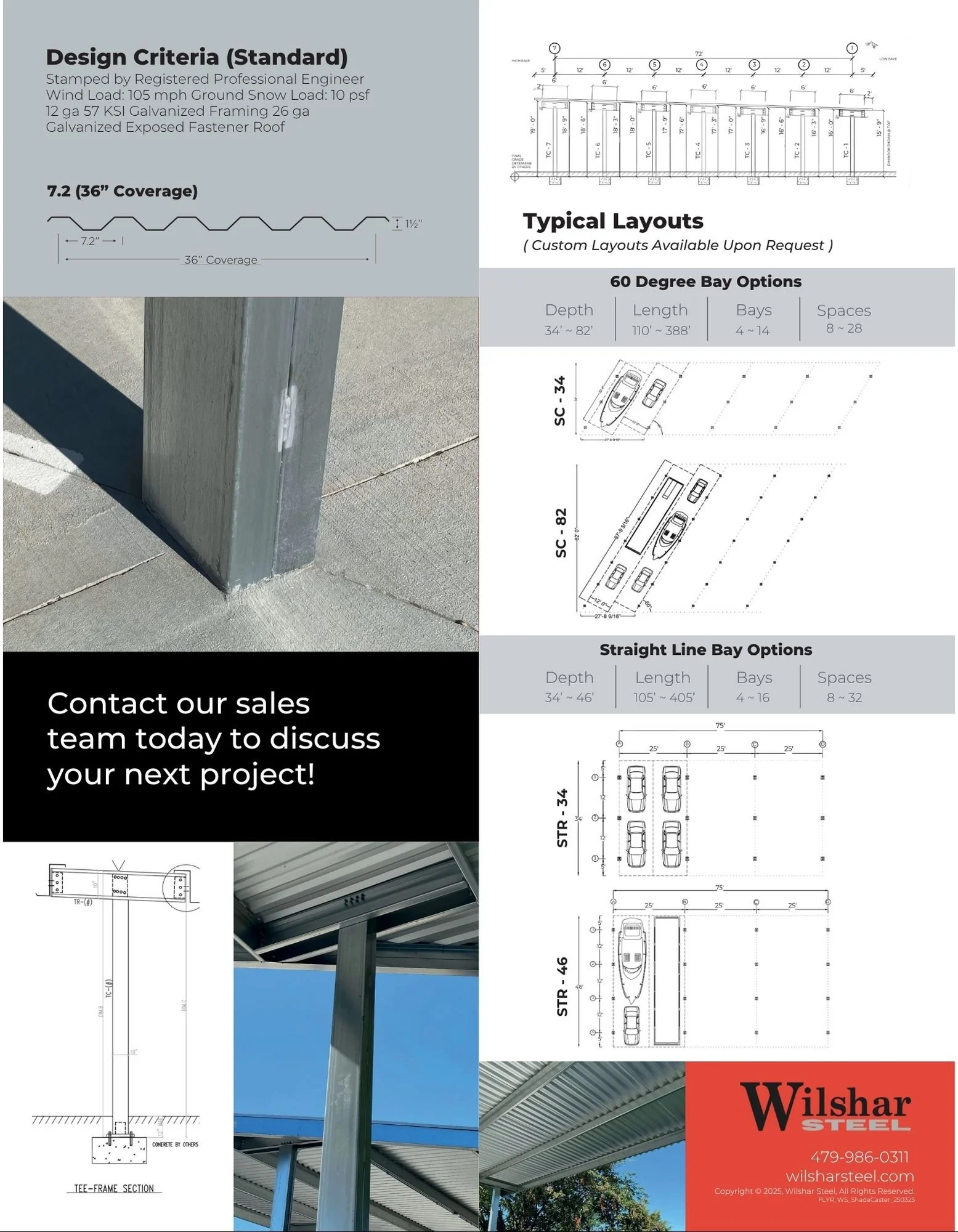

  • Stamped by Registered Professional Engineer

    Wind Load: 105 mph

    Ground Snow Load: 10 psf

    12 ga 57 KSI Galvanized Framing

    26 ga Galvanized Exposed Fastener Roof

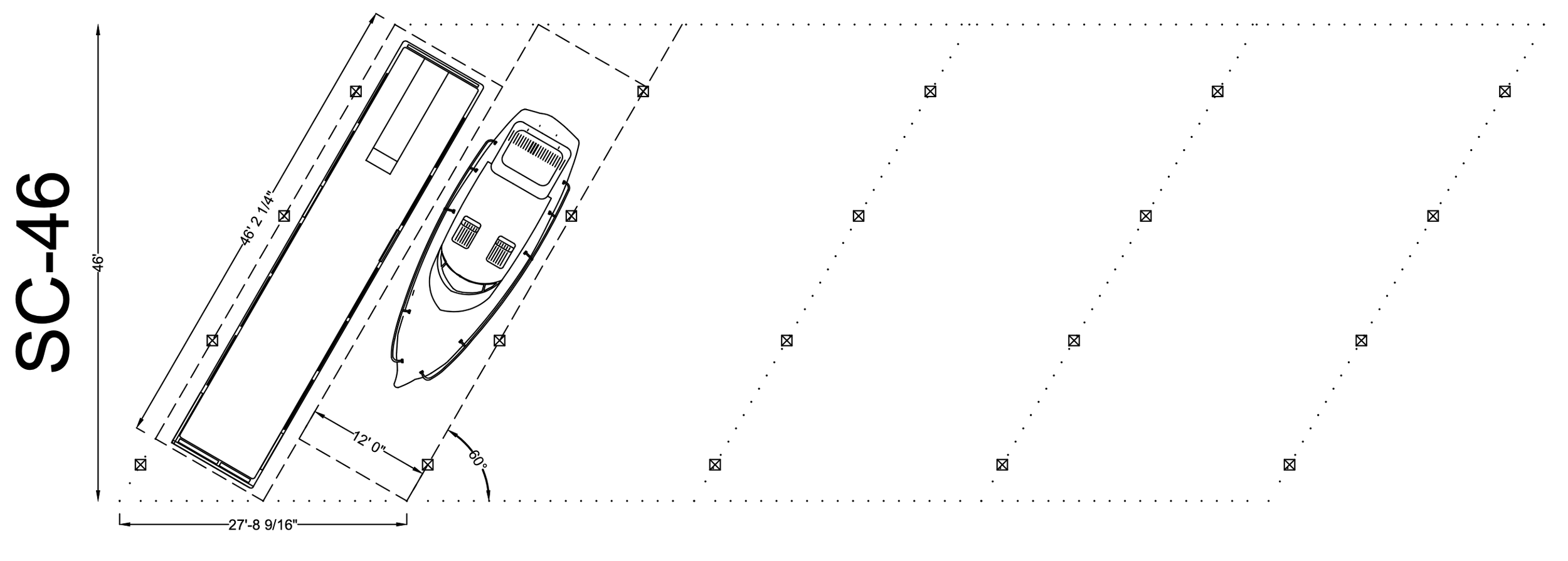

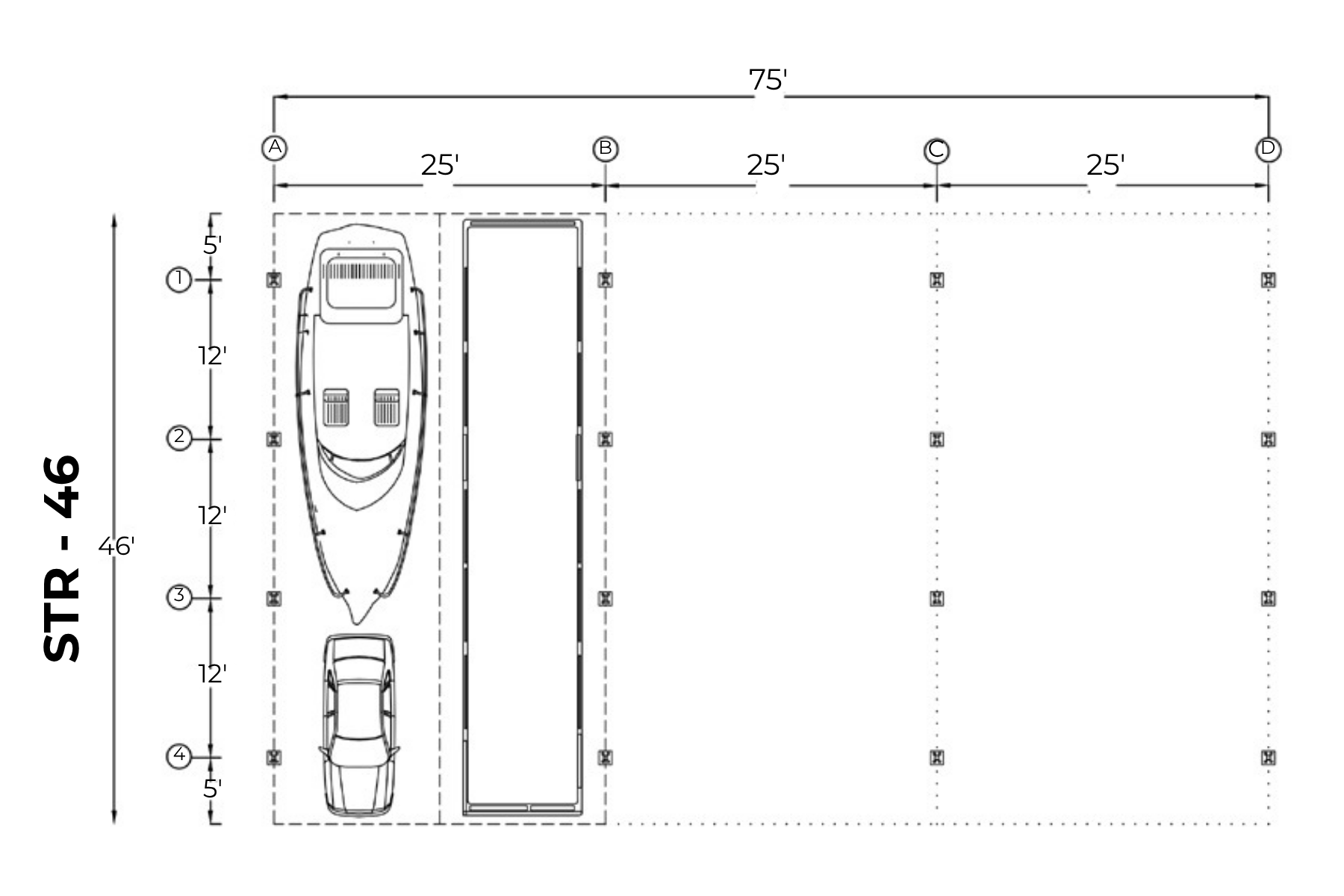

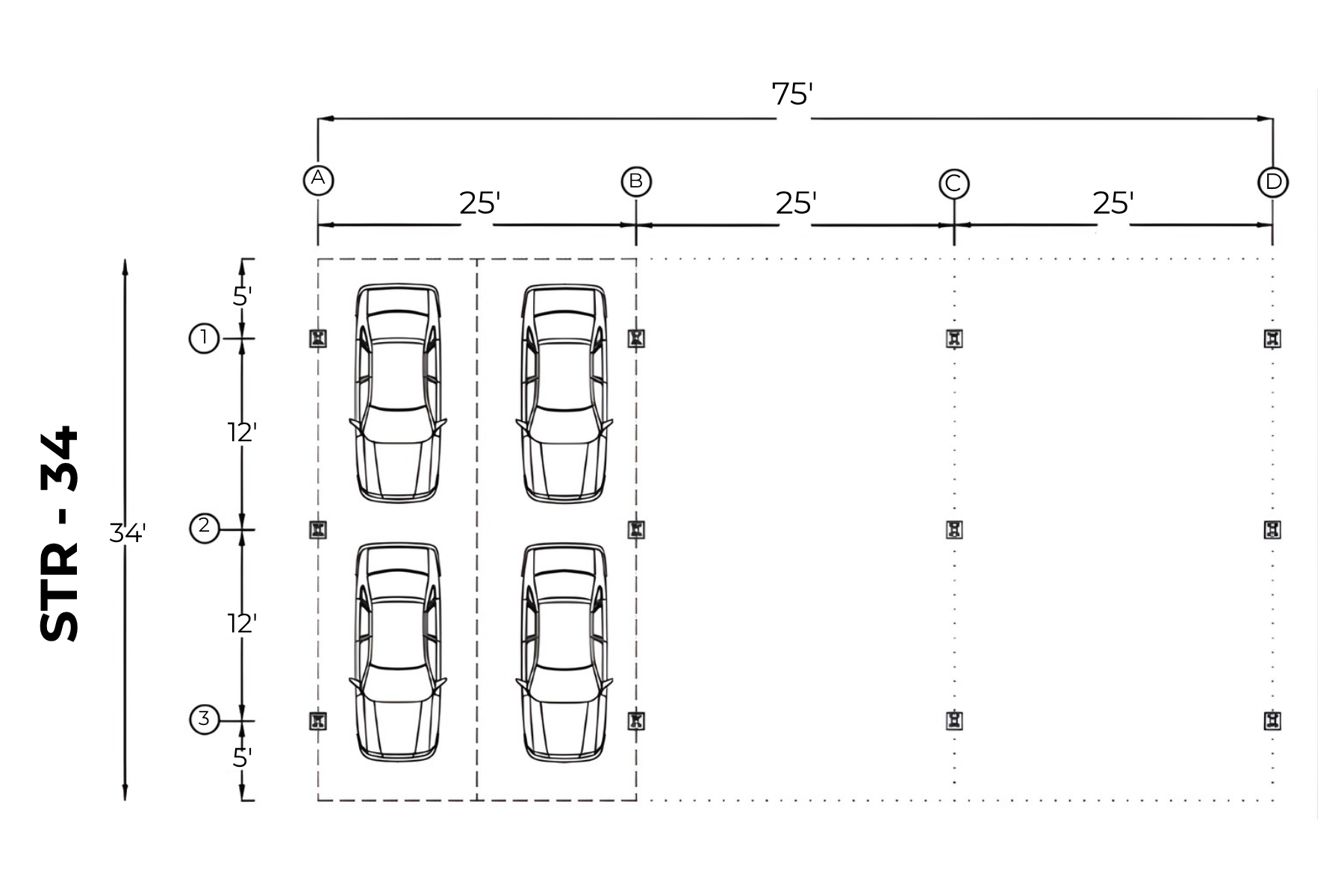

A chart comparing two types of bay options for the 60 Degree Bay, listing depth, length, number of bays, and spaces. Curved bay options have depths from 34 to 82 feet, lengths from 110 to 388 feet, 4 to 14 bays, and 8 to 28 spaces. Straight bay options have depths of 34 to 46 feet, lengths from 105 to 405 feet, 4 to 16 bays, and 8 to 32 spaces.

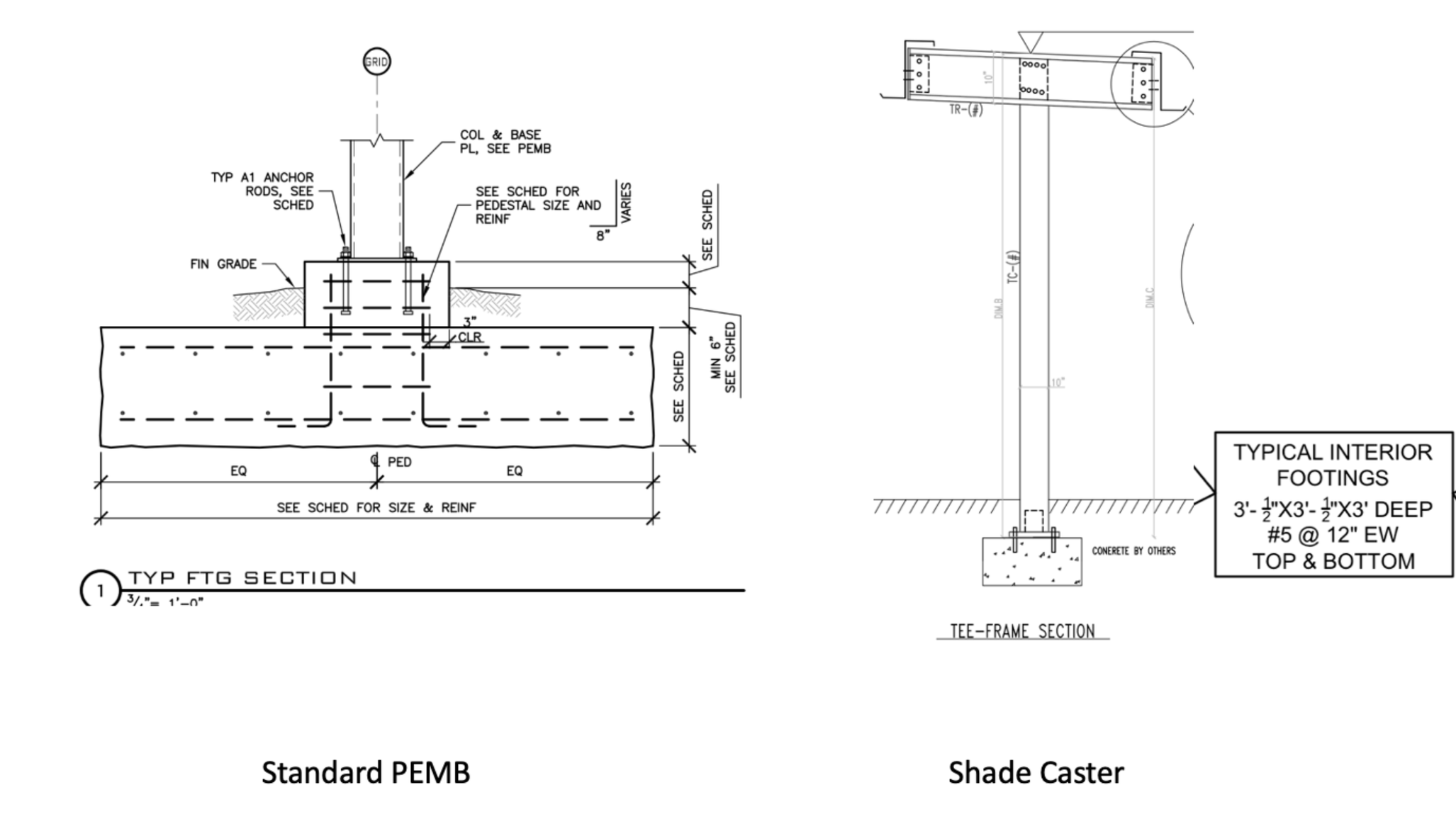

A technical drawing showing a foundation with a base plate and a vertical post mounted on it, with details on footing design and placement
Architectural blueprint and 3D rendering of a shade structure designed by Burke Architecture, located on Shade Street, USA.
Aerial view of a large, open parking lot with two covered areas, with a recreational vehicle parked under one cover, and several cars nearby. Background features leafless trees and a clear sky.
A large, open metal carport with a white roof, housing parked vehicles including a recreational vehicle and several cars, set on a gravel lot with a backdrop of trees without leaves under a clear blue sky.
An outdoor parking lot with metal carports, some of which are empty, and a black Vilano travel trailer parked under a carport on the right side. In the background, there are trees with leafless branches and a clear blue sky.
Carport structures with parked RV and cars on gravel lot under clear blue sky.
A spacious outdoor RV storage facility with a metal roof and several parked RVs, gravel ground, and metal support beams.
